RM3 KTM 1190 Adventure R Steering Damper

ADVENTURE-SPECIFIC STEERING DAMPER

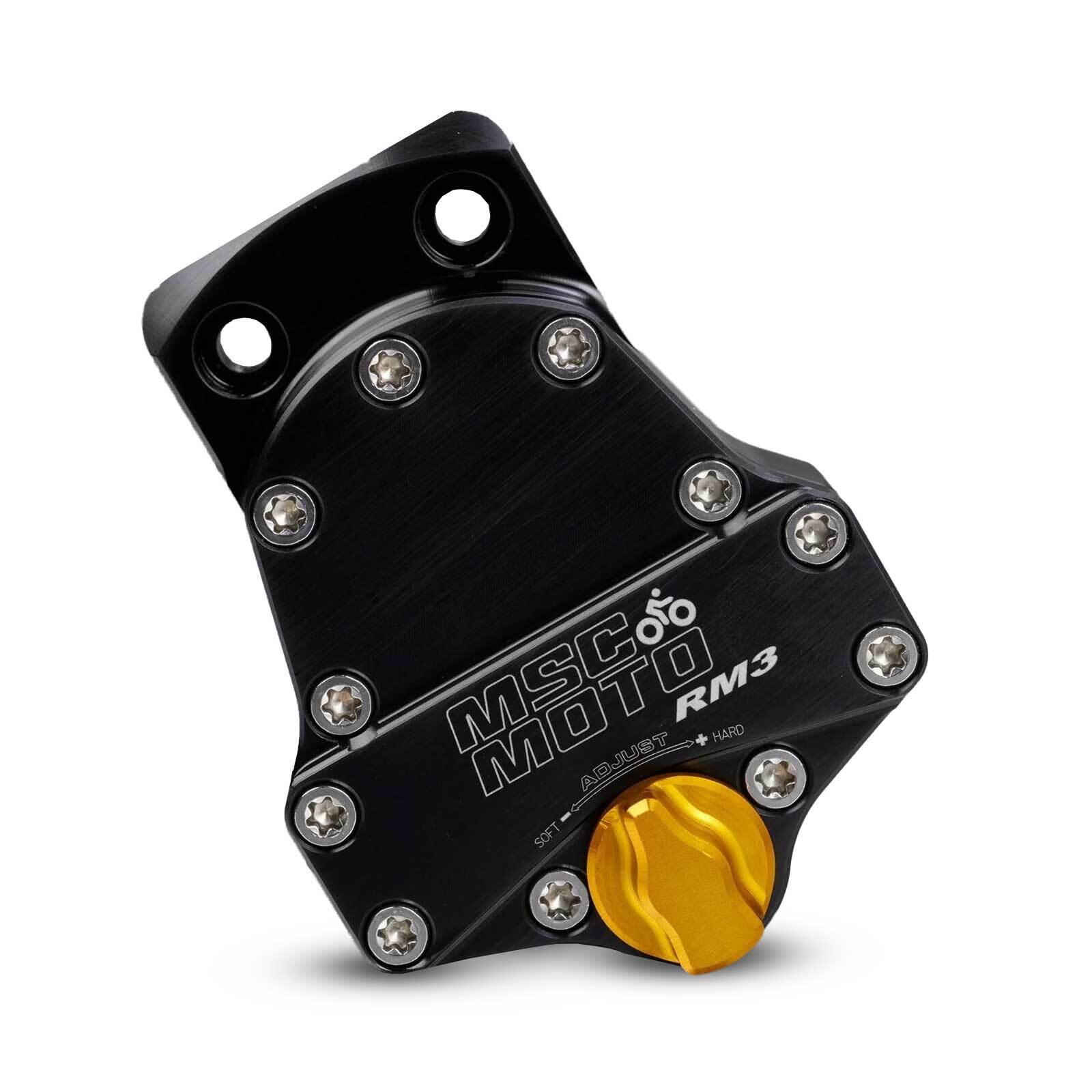

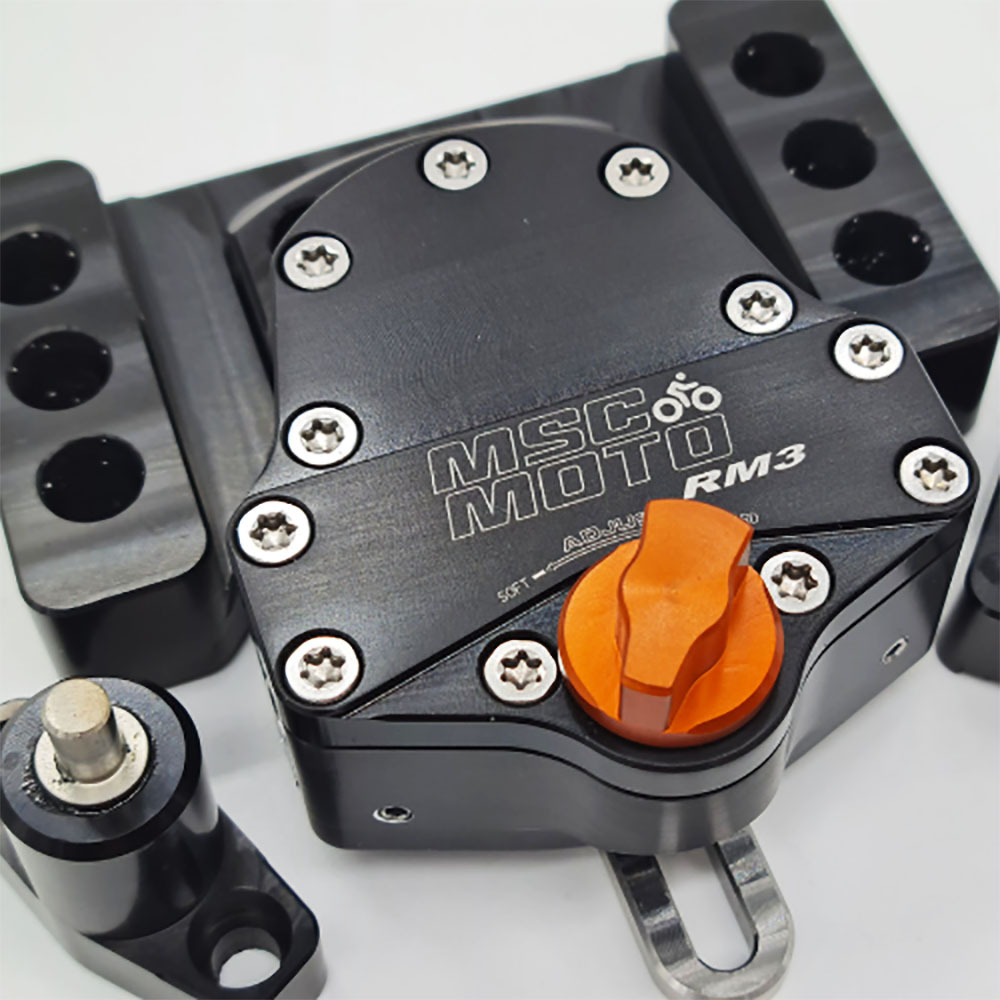

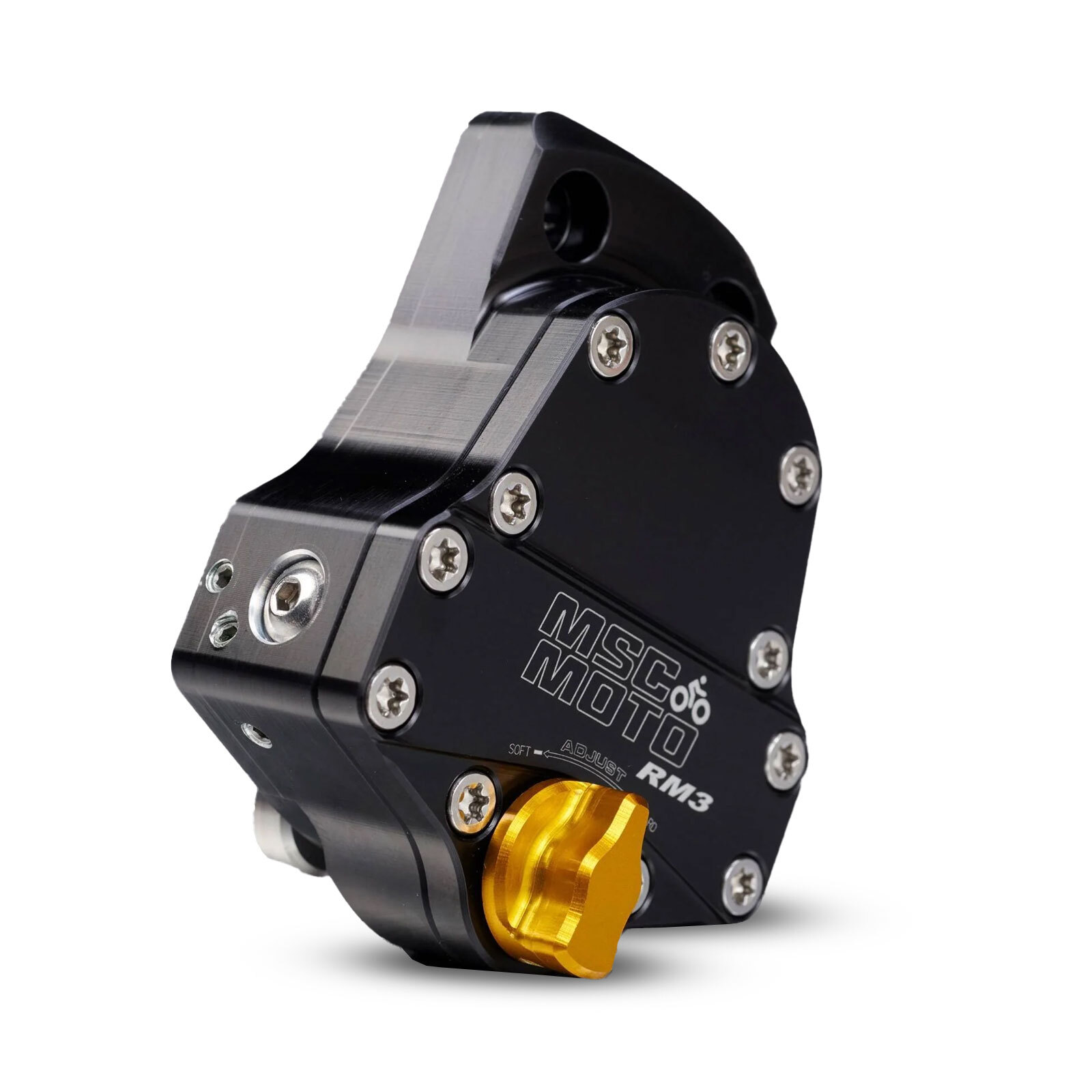

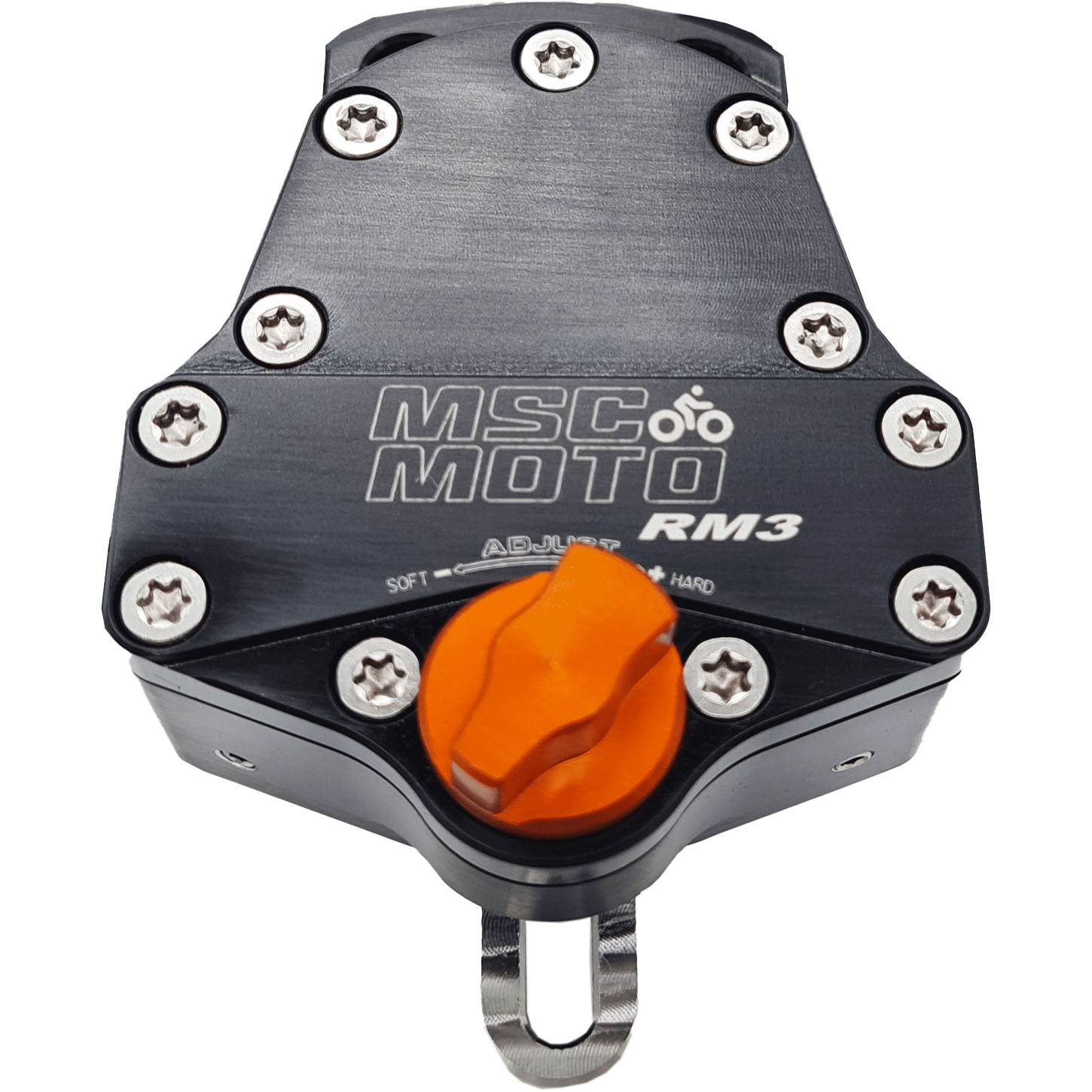

The adventure bike-specific RM3 steering damper unit has a wide range of adjustments with 22 position adjusters with an extremely easy-to-use shape dial. Taking care of the return to centre dampening is our very effective "Active RTC" valves which allow the rider to counter steering in a hurry just like a steering damper with zero damping on return to center, but when you need a damper that has less wiggle in the middle like on big high-speed straight roads or tracks the RM3 will hold you with a postive planted feel in your hands. It's like having both a damper with zero RTC and full damping RTC all in one unit that activates automatically when you need it.

The new KTM Adventure mounting is the most advanced kit available for this bike with no need to modify the frame by drilling holes. Our kit offers superior strength using our tried and proven frame tube clamps the same as our KTM 690 Enduro system has featured since 2009.

The MSC Moto RM3 steering damper kit also has the added benefit of a 25mm handlebar riser offering the rider a more comfortable riding position for those long days in the saddle.

Installation of the KTM 1190 Adventure kit can be completed by any competent person with a basic tool kit.



FEATURES:

   Australian-made with CNC machined billet aluminium

   Reduces headshake and overall ride fatigue

   Reduces wheel deflection from debris and elements

   Hardened steel, long-lasting linkages

   Wide range of adjustment (22 clicks)

   Active Return To Centre Technology

   Fully serviceable by mechanics or MSC

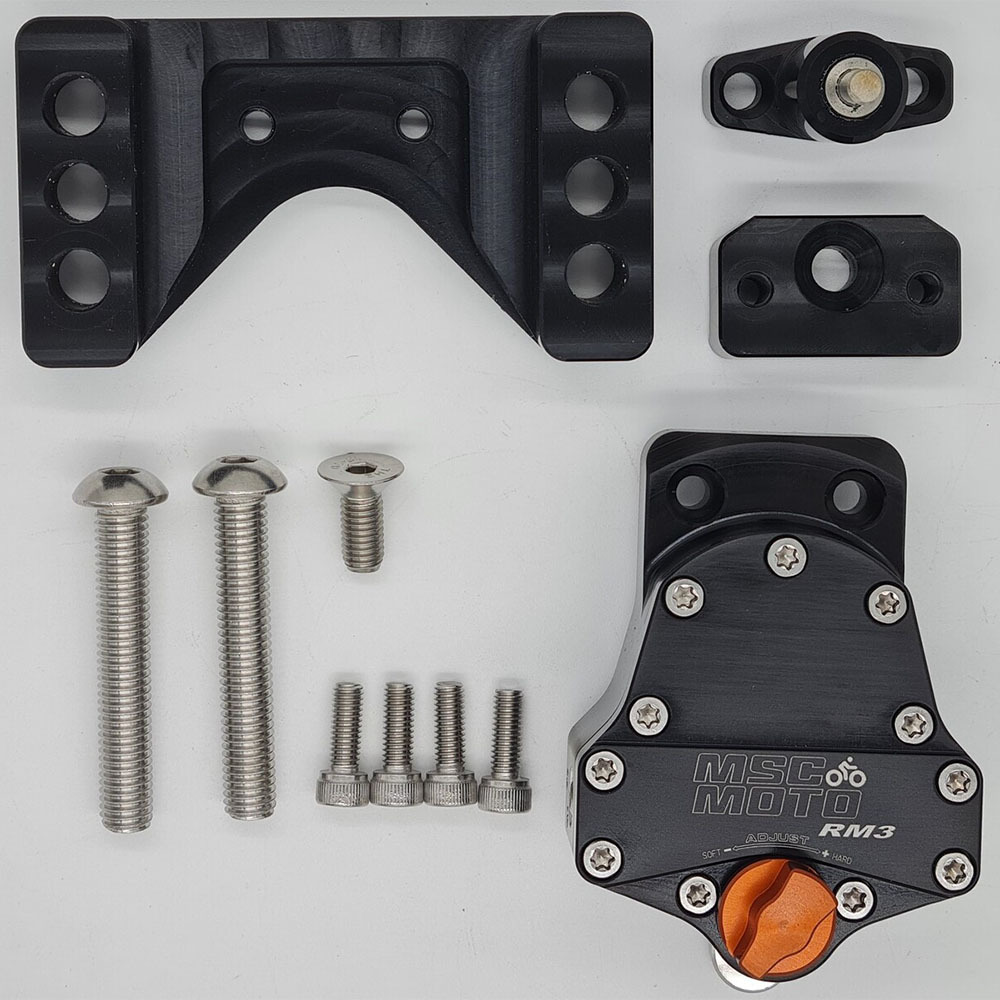

Kit includes;

• RM3 Steering damper unit

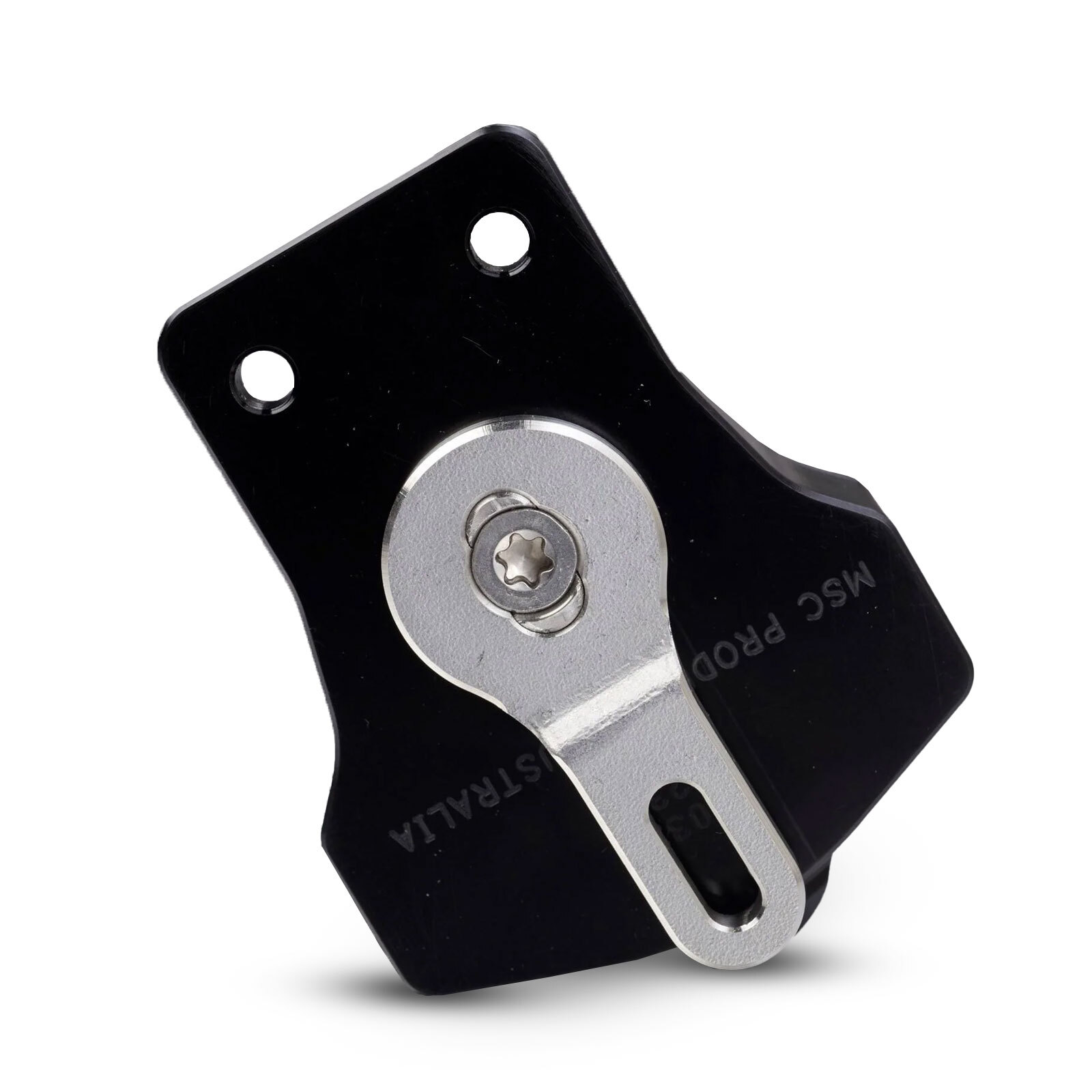

• New frame clamp post mount - 3 parts
• 25mm bar riser incorporating damper mount plate
• All stainless steel fasteners
• Instructions for installation

Check out an adventure that our customer Carl Bouchard had in the Grand Canyon on his KTM 1190 in Your Stories.

FITS:

• KTM 1090 Adventure-R (2016-2020)
• KTM 1190 Adventure (2014-2016)
• KTM 1190 Adventure-R (2014-2016)
• KTM 1290 Super Adventure (2015-2016)
• KTM 1290 Super Adventure-R (2017-2022)
• KTM Super Adventure-S (2017-2022)
